Palette Modes

Chroma Palette includes seven selection interfaces. Each mode changes how users pick hue, saturation, value, and alpha, so you can match the experience to the project, input device, or hardware budget.

Mathematical modes

These modes are rendered entirely on the GPU and do not require texture assets.

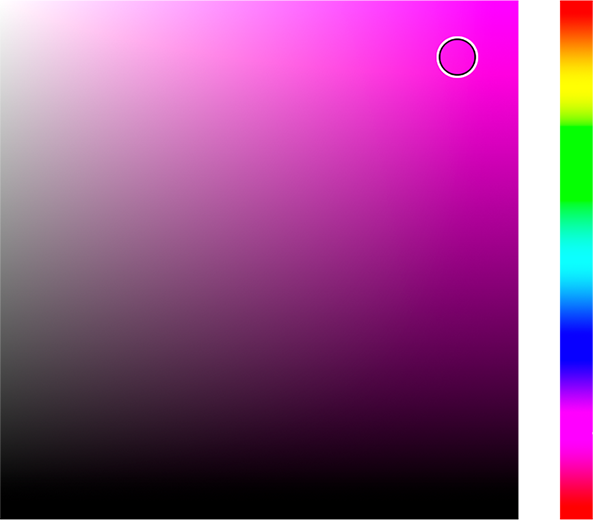

Rectangle mode

Classic HSV panel with a separate hue slider.

• Horizontal axis: saturation (0–1)
• Vertical axis: value/brightness (0–1)
• External slider: hue selection (0–360°)
• Works well for desktop and touch workflows that expect a Photoshop-style picker

using XDPaint.ChromaPalette;
using XDPaint.ChromaPalette.Core;

paletteManager.SetMode(ChromaPaletteMode.Rectangle);

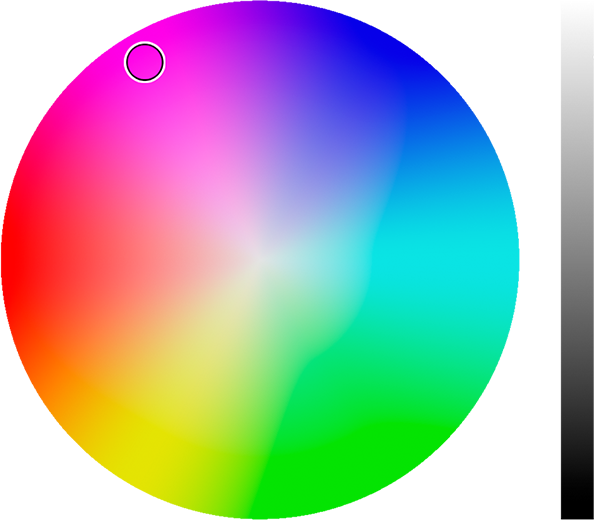

Circle mode

Hue wheel with a saturation radius.

• Angle: hue (0–360°)
• Radius: saturation (0–1)
• External slider: value
• Good balance of familiarity and precision

paletteManager.SetMode(ChromaPaletteMode.Circle);

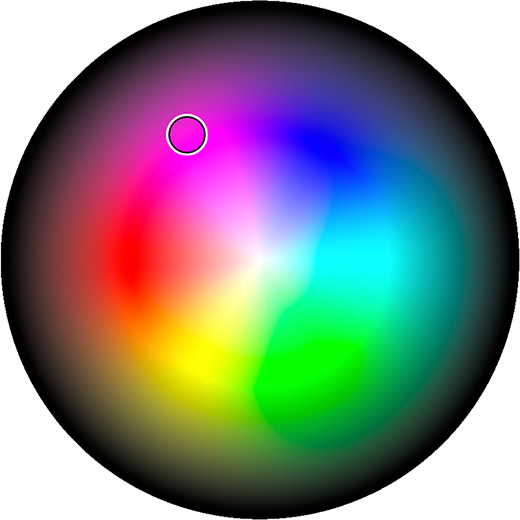

CircleFull mode

All-in-one HSV wheel using a double-cone layout.

• Center: white (value = 1)
• Outer ring: pure hues
• Edge: black (value = 0)
• Ideal when you want the picker to live in a compact UI without extra sliders

paletteManager.SetMode(ChromaPaletteMode.CircleFull);

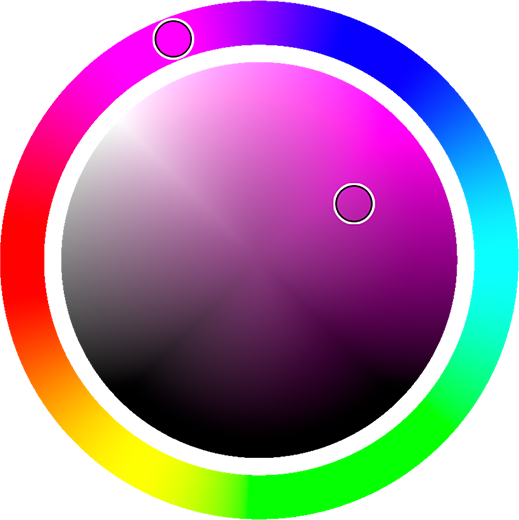

CircleCircle mode

Hue ring surrounding a saturation/value disc.

• Outer ring: hue
• Inner disc X-axis: saturation
• Inner disc Y-axis: value
• Maintains circular gestures for both cursors—great for stylus and VR controllers

paletteManager.SetMode(ChromaPaletteMode.CircleCircle);

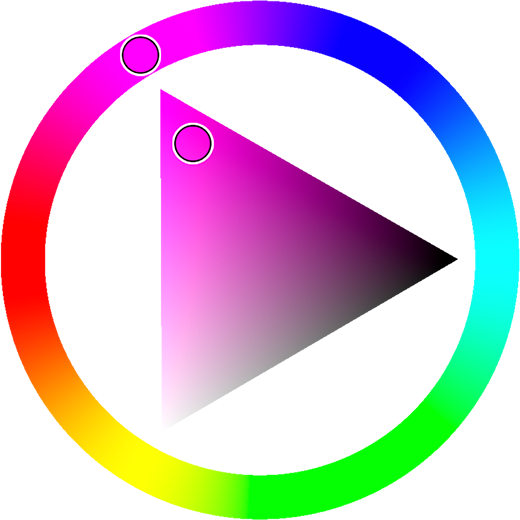

CircleTriangle mode

Hue ring paired with an HSV triangle.

• Outer ring: hue
• Triangle vertices: white, black, and the selected hue
• Triangle surface: full saturation/value range
• Provides high precision for art tools; assign both cursors in the inspector

paletteManager.SetMode(ChromaPaletteMode.CircleTriangle);

Note: CircleTriangle uses two cursor references: paletteCursor for the triangle and paletteCursorExternal for the hue ring.

Content-based modes

These modes sample color data from textures.

Texture mode

Samples from any Texture2D you provide.

• Use for brand palettes, captured gradients, or screenshots
• Supports bicubic sampling for smooth gradients or snapping for pixel-perfect selection
• Alpha and ignored-color filters help avoid unwanted areas

paletteManager.SetPaletteTexture(myTexture2D);
// Same as assigning the texture in Texture Mode Settings and switching to Texture mode

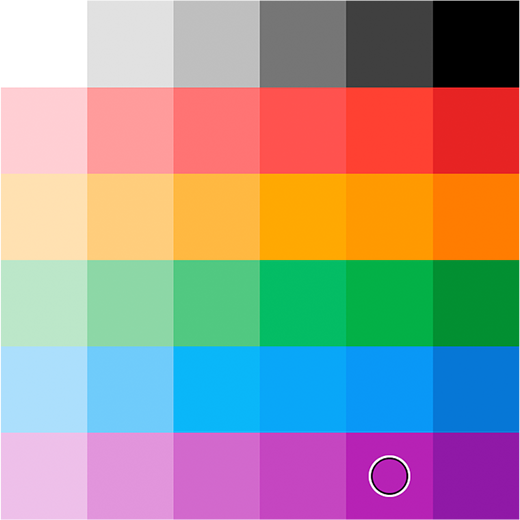

Palette mode

Samples from a generated ColorPalette ScriptableObject.

• Use built-in harmony types (complementary, triadic, tetradic, analogous, split-complementary, monochromatic, gradient, custom)
• Palette assets auto-regenerate when you tweak settings
• Works at edit time or runtime

using XDPaint.ChromaPalette;
using XDPaint.ChromaPalette.Core;
using XDPaint.ChromaPalette.ScriptableObjects;

[SerializeField] private ColorPickerManager paletteManager;
[SerializeField] private ColorPalette paletteAsset; // Assign in Palette Settings → Color Palette

void Start()
{
    paletteAsset.GeneratePalette();
    paletteManager.SetMode(ChromaPaletteMode.Palette);
}

Switching modes at runtime

using XDPaint.ChromaPalette;
using XDPaint.ChromaPalette.Core;

public class PaletteModeController : MonoBehaviour
{
    [SerializeField] private ColorPickerManager paletteManager;

    private ChromaPaletteMode currentMode = ChromaPaletteMode.Rectangle;

    public void SetMode(int dropdownIndex)
    {
        currentMode = (ChromaPaletteMode)dropdownIndex;
        paletteManager.SetMode(currentMode);
    }

    public void NextMode()
    {
        var modes = System.Enum.GetValues(typeof(ChromaPaletteMode));
        var next = ((int)currentMode + 1) % modes.Length;
        currentMode = (ChromaPaletteMode)next;
        paletteManager.SetMode(currentMode);
    }
}
